YSC-25CHW/FR
|
YSC-35CHW/FR
|
YSC-55CHW/FR
|
|||
|
PowerSupply
|
V/Hz
|
220-240/50D
|
220-240/50
|
220-240/50
|
|
|
ErP Level
|
35℃
|
A+++
|
A+++
|
A+++
|
|
|
ErP Level
|
55*C
|
A++
|
A++
|
A++
|
|
|
Nominal Heating Capacity（A7C/W 35℃）
|
kW
|
8
|
10
|
15
|
|
|
Heating
(A7°C/6°C)
(W30 °C-35°C)
|
Heating Capacity Range
|
kW
|
3.31-8.35
|
3.54-10.50
|
5.35-15.8
|
|
Heating Input Power Range
|
kW
|
0.69-1.96
|
0.75-2.51
|
1.12-3.73
|
|
|
COP Range
|
w/w
|
4.78-4.25
|
4.72-4.18
|
4.76-4.24
|
|
|
Heating
(A7°C/6°C）(W50°C-55°C)
|
Heating Capac lty Range
|
kW
|
3.08-7.34
|
3.25-8.95
|
4.82-13.65
|
|
Heating Input Power Range
|
kW
|
0.81-2.86
|
0.87-3.54
|
1.28-5.29
|
|
|
COP Range
|
w/w
|
3.82-2.57
|
3.74-2.53
|
3.78-2.58
|
|
|
Hot Water
(A20°C/15°C)(W15°C-55°C)
|
Heating Capac lty Range
|
kW
|
3.98-10.10
|
4.25-11.82
|
6.45-18.94
|
|
Heating Input Pow or Range
|
kW
|
0.77-2.34
|
0.85-2.83
|
1.26-4.47
|
|
|
COP Range
|
w/w
|
5.15-4.32
|
5.02-4.17
|
5.10-4.24
|
|
|
Cooling
(A35°C/24°C)
(W12°C-7°C)
|
Cooling Capacity Range
|
kW
|
2.85-7.42
|
3.28-8.20
|
5.85-12.30
|
|
Cooling Input Pow or Range
|
kW
|
0.93-2.78
|
1.10-3.24
|
1.89~4.52
|
|
|
EER Range
|
w/w
|
3.06-2.67
|
2.98-2.53
|
3.10-2.72
|
|
|
Max.Rated Input Power
|
kW/h
|
6.3
|
7.1
|
9.1
|
|
|
Max.Pressure at high Pressure Side
|
Mpa
|
4.2
|
4.2
|
4.2
|
|
|
Max.Pressure at low Pressure Side
|
Mpa
|
2.2
|
2.2
|
2.2
|
|
|
Wat or Flowrate
|
m/h
|
1.2
|
1.2
|
1.89
|
|
|
Refrigerant Type/Input
|
kg
|
R32/1.5
|
R32/15
|
R32/2.3
|
|
|
CO2 Equivalent
|
Tonnes
|
1.02
|
1.02
|
1.56
|
|
|
Compressor
|
Type
|
DC Inverter+EVI
|
|||
|
Fan Motor
|
Type
|
DC Inverter
|
|||
|
Water Pump
|
Type
|
DC Invertor
|
|||
|
Heating&Hot Water Temp
|
℃
|
30 to 60
|
|||
|
Outdoor Temperature limit
|
℃
|
-30 to 45
|
|||
|
Indoor Unit
|
Auxilary Heating Power Input
|
kW
|
3
|
3
|
3
|
|
Water Connection
|
Inch
|
1.2/DN32
|
1.2/DN32
|
1.2/DN32
|
|
|
Copper Pipe Connection
|
Inch
|
3/8+5/8
|
3/8+5/8
|
1/2+3/4
|
|
|
Noise Leve
|
dB(A)
|
32
|
32
|
32
|
|
|
Net Weight
|
kg
|
46
|
47
|
50
|
|
|
Net Dimension（L*W*H）
|
mm
|
550*430*800
|
590*430*890
|
550*430*800
|
|
|

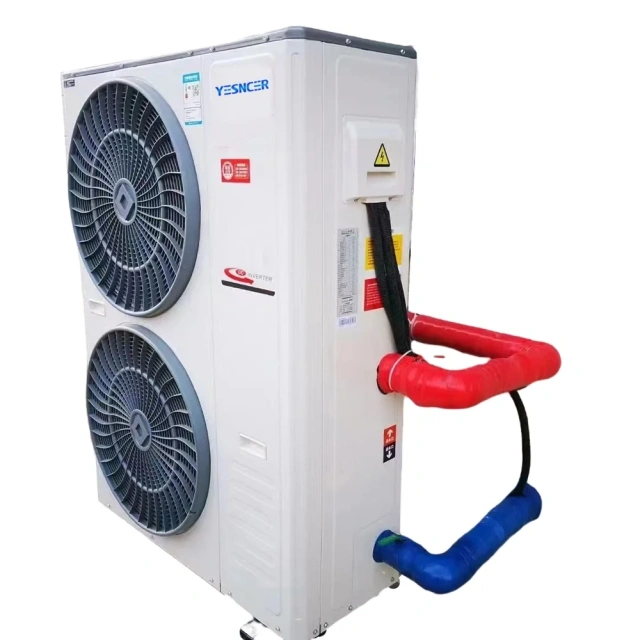

Outdoor Unit
|
Noise Level
|
dB (A)
|
55
|
55
|
57
|
|
Net Weight
|
kg
|
69
|
75
|
102
|
|
|
Net Dimension
(L*W*H）
|
mm
|
1000x390x860
|
1000x390x860
|
1000x390x1380
|
|
| SERVICE WE SUPPLY | |||||
| The CAD design drawing plan of the project | We will following the goods delivery untill you are available | ||||
| We will send you the test report before shipping | Supply the installation and maintanence instruction maximum energy output online |
||||
| The free spare parts available | If any quality problem of product, we can refund you | ||||
| You can get us at any time, after order placed | Three years' warranty | ||||
